Roof flashing & pipe jacks: the leak points that matter.
Flashing and roof penetrations are common leak locations — not only missing shingles. Here is what these parts do, how they fail, and how to tell when a targeted repair is enough.
What flashing is
Flashing is the thin, formed metal installed wherever the roof meets something else: a chimney, a wall, a valley, a skylight, a vent pipe, or the edge of the roof. Shingles shed water down the slope, but they cannot seal a joint on their own. Flashing bridges those joints and returns water to the field of the roof so it can drain.
- Step flashing — woven into shingle courses at a sidewall.
- Counter flashing — caps the step flashing at masonry.
- Valley flashing — carries high water volume between planes.
- Drip edge — pushes water into the gutter, not behind it.
- Pipe flashing — seals around each plumbing vent pipe.
Material matters: thin or inadequately protected metal corrodes sooner than heavier, better-coated material.
Why pipe jacks fail first

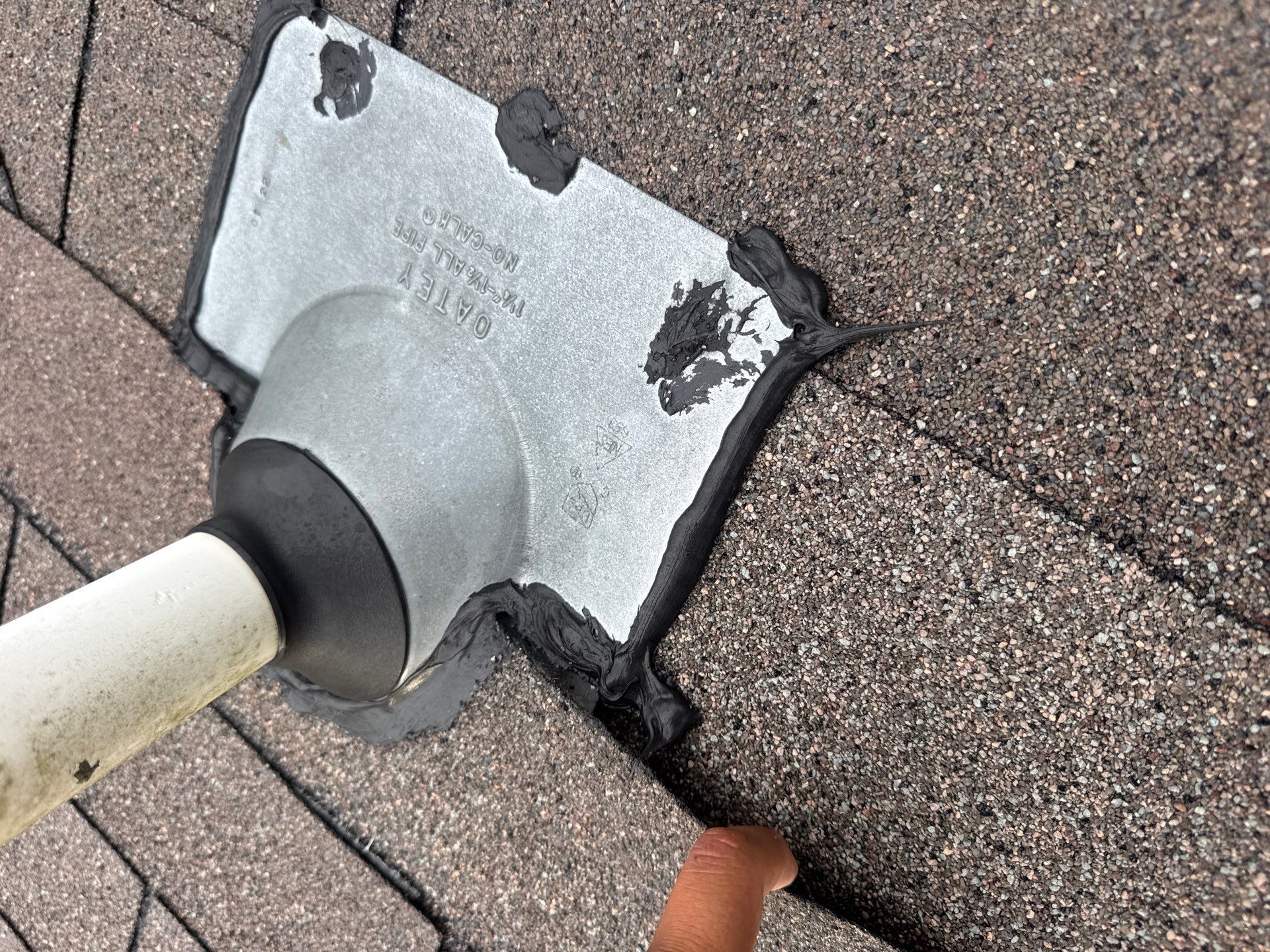

A pipe jack has two parts: a metal base laid into the shingles and an EPDM rubber collar that seals against the pipe. The metal base may last longer than the rubber collar, though service life varies with exposure, materials, and installation.
Once the collar cracks, water can run down the pipe and appear on a ceiling below — often a bathroom, laundry room, or kitchen. Caught early, the fix is usually contained: replace the boot or fit an oversleeve. Caught late, after decking has soaked, the scope grows.
Walls, valleys, and storm damage

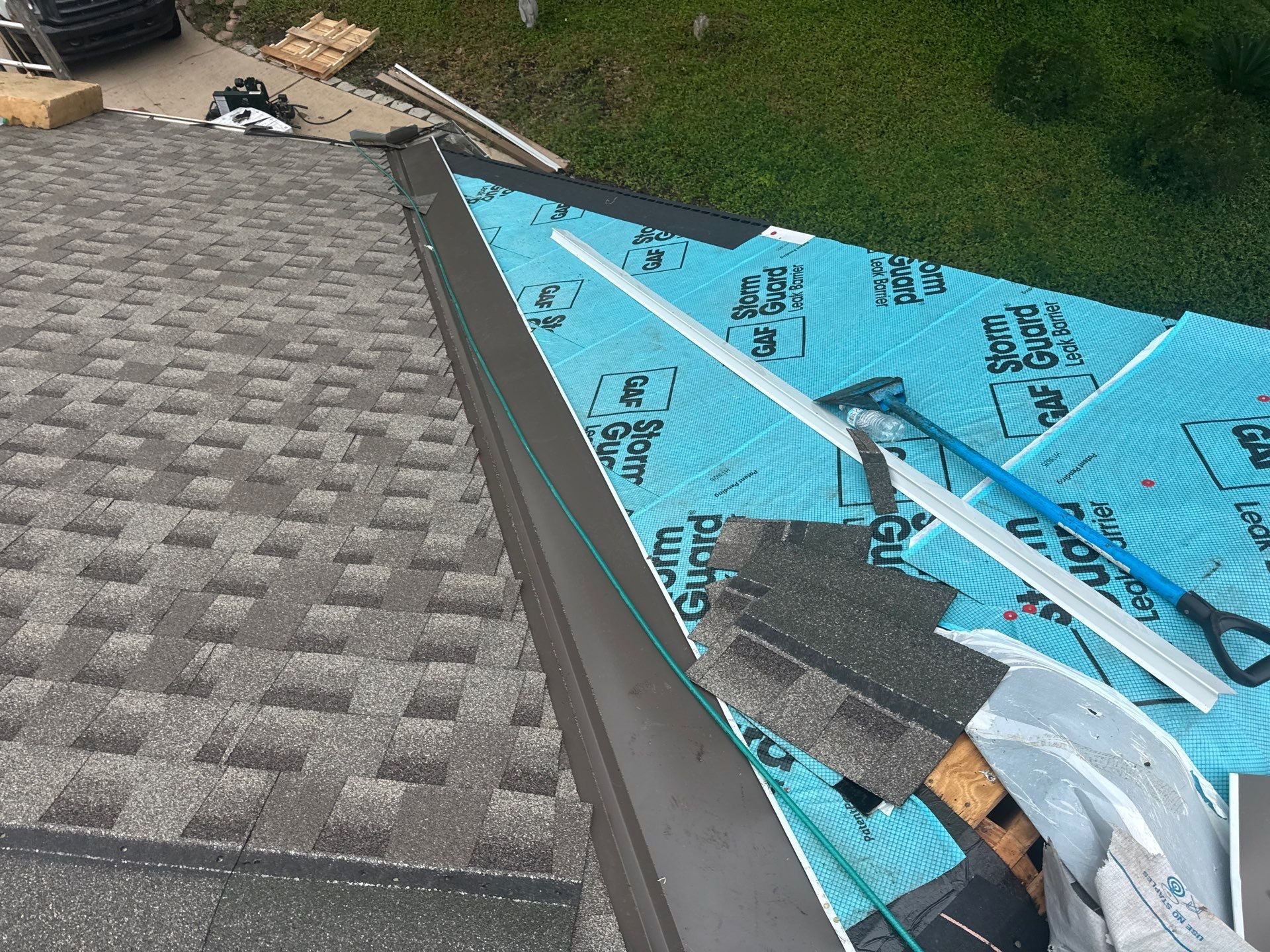

Valleys and wall lines move the most water on a roof, so they show problems first. Wind-driven rain can push water sideways under shingle edges and into open seams, and debris sitting in a valley holds water against the detail.
After weather, look along sidewalls for lifted or displaced step flashing and check valleys for debris. What we find at those details determines whether a targeted repair or a larger scope is proposed.
A short ground-level checklist.
Most of this can be seen from the ground with binoculars. Do not walk a roof you are not equipped to be on.

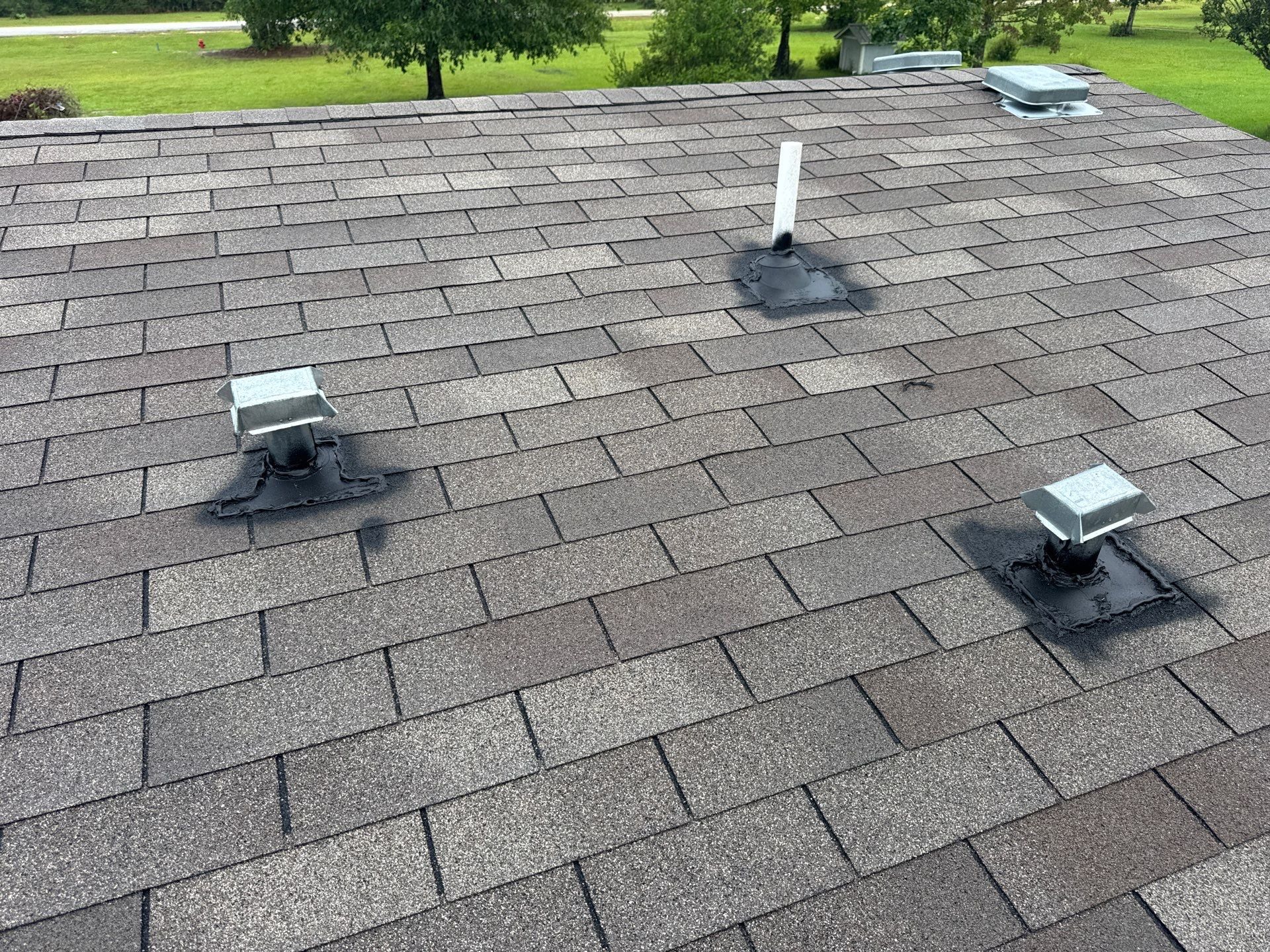

- Cracked or split rubber collar on any plumbing vent boot.
- Rust streaks on shingles below a chimney, wall, or vent.
- Exposed or backed-out nail heads with missing sealant.

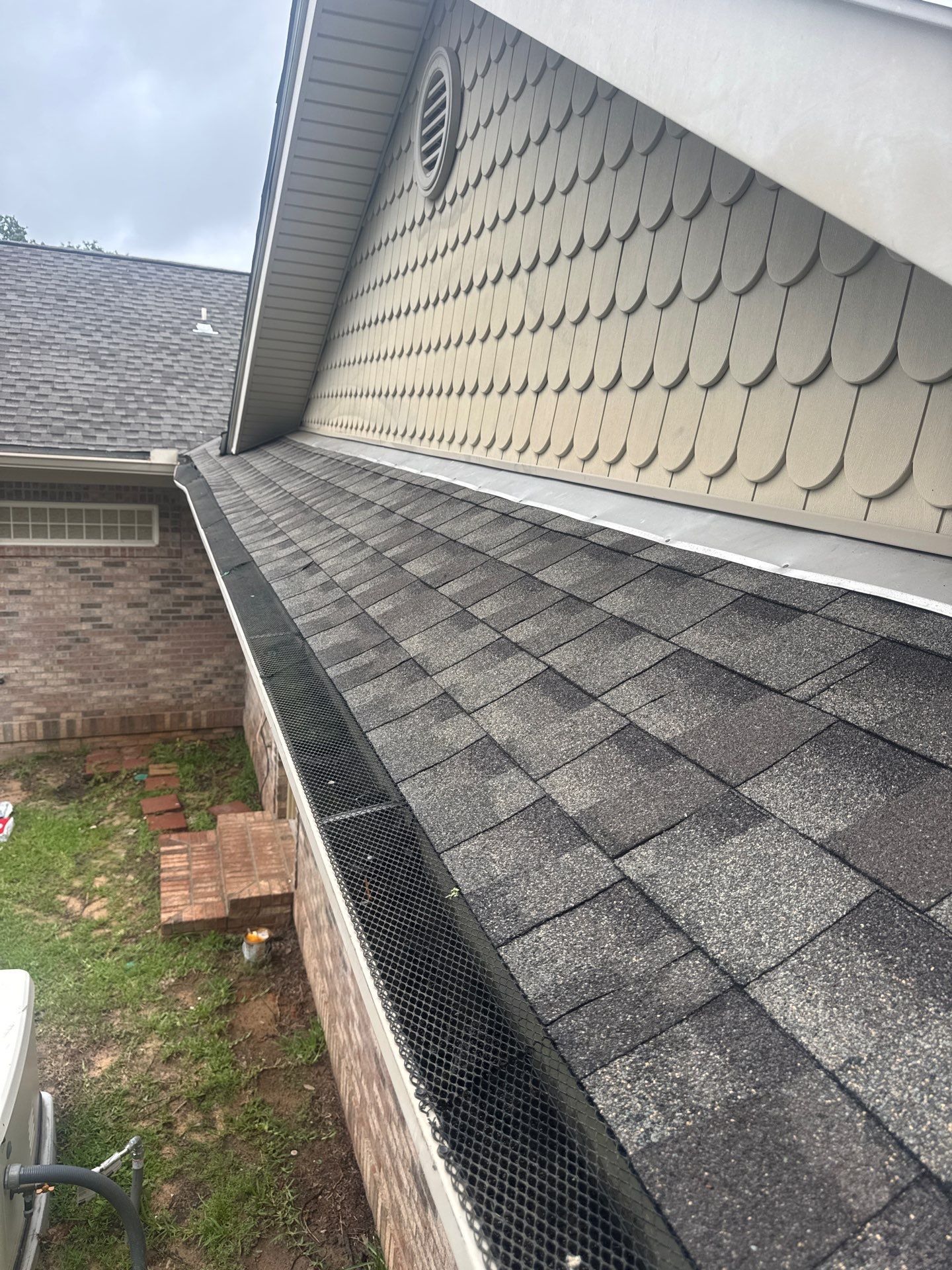

- Lifted or displaced step flashing where the roof meets a sidewall.
- Debris or granule buildup sitting in a valley.
- A ceiling or wall stain below a roof penetration.
Common questions.
What is roof flashing?
Roof flashing is thin, formed metal — usually galvanized steel or aluminum — installed at roof joints, transitions, and penetrations. It directs water away from seams the shingles or panels can't fully seal: chimneys, walls, valleys, skylights, vents, and the edges of the roof. Missing or failed flashing increases the risk of water entering at those joints.
What is a pipe jack (pipe boot) and why does it fail?
A pipe jack — also called a pipe boot or vent flashing — is the rubber-and-metal collar that seals around plumbing vent pipes coming through the roof. The metal base may last longer than the rubber collar on top, though service life varies with exposure, materials, and installation. When the rubber gasket dries out or cracks, water can run down the pipe and into the ceiling below. Pipe jacks are worth checking periodically and replacing or oversleeving when the rubber shows cracking.
How do I know if my flashing is failing?
Look for rust streaks on shingles below chimneys or vents, a stained ceiling near an interior wall that meets the roof, exposed nail heads with missing sealant, or a cracked rubber boot around a vent pipe. Lifted or missing step flashing along a sidewall is another common finding after a storm.
Can roof flashing be repaired, or does the whole roof need to be replaced?
Many flashing repairs are targeted: rebuild the chimney counterflashing, replace step flashing along a wall, swap a cracked pipe boot, or re-seal a skylight curb. Whole-roof replacement is only appropriate if the inspection finds conditions that call for it — roof age, overall condition, the extent of damage, and the state of the decking all factor in. A broader replacement may be considered when inspection shows widespread or end-of-life conditions. Localized decking damage still needs repair, but it does not by itself determine that the entire roof should be replaced.
Does flashing material matter?
Yes. Thin or inadequately protected metal corrodes sooner than heavier, better-coated material. Flashing materials and specifications are selected for the specific job and defined in the written proposal.
